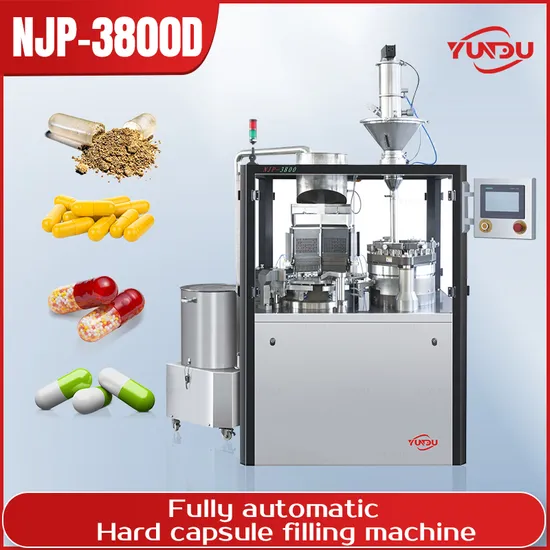

3800 Capsules/Min Capsule Filling Equipment for Pharmaceutical Industry

Overview
Detailed Photos

Overview

Basic Info.

Model NO.	NJP-3800D
Condition	New
Customized	Customized
Fill Range	Capsules
Filling Principle	Volumetric Filling
Machine Type	Capsule Filling Machine
Main Material	Plastic
Voltage	380V
Warranty	1year
Transport Package	Wooden Box
Specification	139511802260mm
Trademark	Yundu
Origin	China
HS Code	3624050101

Packaging & Delivery

Package Size1395.00cm * 1180.00cm * 2260.00cm Package Gross Weight1500.000kg

Product Description

It adopts the disc valve feeding method and is equipped with a vibration device. It solves the problem that the traditional screw feeding device has no fluidity and often fails to feed powders with poor fluidity such as Chinese herbal medicines and proprietary Chinese medicines. Easy to disassemble, easy to replace and clean. Driven by guide rail, it has high precision and long service life. The closed design effectively prevents waste capsules and dust from entering. Good stability, orderly seeding, and accurate direction adjustment.Modular design is adopted, and the pin-type positioning of the filling holder is used. During production, there is no need to stop the machine to adjust the filling capacity, and it is convenient to replace different filling rods.
The slot-type lock capsule plate has flexible adjustability and can be fine-tuned at any time without adjusting the station pull rod. Purified compressed air and intermittent gas impingement technology are adopted. It solves the problem of powder sticking to the mold and improves the probability of capsule loading.
