Basic Info.

Model NO.	PVPE50
Automatic Grade	Automatic
Application	Dairy Products, Tea, Rice, Flour, Dry Power/Small Granules/ Flakes
Type	Filling and Sealing Machine
Forming Species	Bag Moulding
Forming Function	Filling, Seal
Driven Type	Pneumatic
Material Type	Powder
Packaging	Bags
Packaging Material	Powders and Granular
Product Name	Packaging Machine for 25kg and 50kg Cement Bags
Main Function	Accurate Weighing and Fast Filling
Packing Material	Plastic Valve Bag, Kraft Paper Valve Bag etc
Sealing Type	Self Close, Heat Sealing or Ultrasonic Sealing
Filling Range	10-50kg, Adjustable on The Electric Scale
Driving System	Auger, Impeller Feeding or Pneumatic Air Flow Feed
Optional Devices	Bag Placer, Bag Magazine, Conveyor, Check Weigher
Scope of Application	Construction Material,Mortar, Starch, Flour Plant
Capacity	up to 400bags/H/Set
1 Year Warranty	Included PLC, Main Motor, No Quick Wearing Parts
Transport Package	Wooden Cases
Specification	195011002450mm
Origin	China
HS Code	8422303090
Production Capacity	500PCS/Year

Product Description

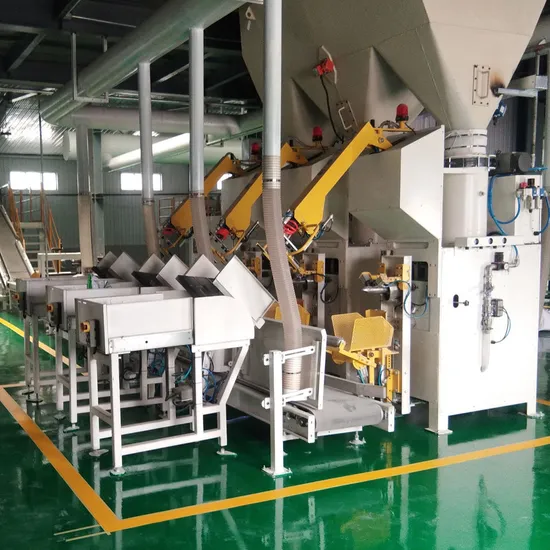

Full Automatic Valve Bag Packing Machine

Product Description:
This is our valve bag filling and packing machine, it finish weighing and filling or even sealing automatically. The machine suitable for packing powder product, small granular product or flakes products into valve bags.
We have both semi automatic valve bag packing machine and fully automatic valve bag packer, the speed 3-8bags/min/set, max speed up to 480bags/set/hour.

Features: 1. World Top Brands Electric Configuration 2. Thick and Solid Materials, Well Treated Surface3. Best Programing4. Multi Driving Optional: pneumatic driving, impeller driving, or screw auger driving valve bag packer5. PLC Control with English Color Touch Screen
6. High Precision Weighing
7. Well Protect for Operators
8. Many Other Equipments Optional9. Machine Color can be Customized10. Long Warranty11. Professional Service Team
12. Strong Customized Ability

Some Parts: Product Specifications
Packaging Process:

Scope of Application:Our packing machine is widely used in Building Material Industry, Food Industry, Chemical and Refractory Material Industry, Pet Food and Other Industry.
Valve Bags After Filling:
Other Related Products
Company Profile1. Our Factory Pictures:

2. Cooperative Clients Pictures:

Full-Automatic Filling Packaging Machine for 25kg and 50kg Cement Bags

3. Packaging and Shipping:

4. Parts of Sales Market: FAQ:Q1: What product do you mainly supply?
A1:We manufacture and export packing and filling machines, including big packing machines like valve bag filling and packing machine, bulk ton bag filling machine, palletizing line, inline or stretch hood pallet wrapping machine, and small vertical packing machine like filter tea bag packing machine, pyramid tea bag packing machine, drip coffee bag packing machine, sugar / seeds / nuts/ ground coffee / milk powder / seasoning powder / chips / ketchup etc.

Q2: What is the delivery time?
A2: Different model packing machine with different delivery time, for small packing machines, the production time can be 10-30days, while for some big packing machine or packing line, the time up to 60 days or even 90 days, so please communicate with us and get exact delivery time.

Q3: What is your payment term for business?
A3:We usually handle with TT in advance, this is quick and easy way. While for some countries have difficulty to pay TT advance, we can also handle TT+LC term, while we recommend the TT payment term if possible.
Q4: What shall we do if we meet problem with your machines? Do you have service Center in my region?
A4: Our packing machines on sale are mature after long time testing and debugging, so the machine very reliable. Some adjusting problem if you meet, that can be solved online, our experienced engineer will give video guiding, this is most convenient and economic way. If oversea online service needed, we also have oversea service team able to service abroad.

No.	Item	Data
1	Power	5KW
2	Production capacity	3-8bags/min/set
3	Measuring accuracy	±150g, depends on product feature and filling weight
4	Bag size	L: 400mm-560mm, W: 350mm-500mm (other size can be customized)
5	Nozzle diameter	can be customized
6	Bag type	inner valve bag, heat sealable valve bag, or ultrasonic sealable bag
7	Air consumption	approx 40m3/h/set (6 bar, dry, clean)
8	Machine size and G.W.	185012002450mm, 1400kgs
