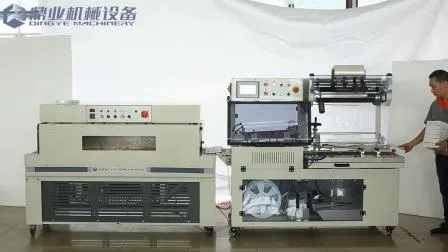

High Speed Automatic L sealer DQL5545G & Shrink Tunnel DSC4525L

Basic Info.

Model NO.	DQL5545G & DSC4525L
Automatic Grade	Automatic
Driven Type	Electric and pneumatic
Manner of Packing	L type sealing
Adjust Speed	Electronic Speed Control
Type	POF Shrink Film Machine
Heating Mode	Quartz Heating Tube
Packaging Material	Film
Transport Package	Wooden Packing
Trademark	DINGYE
Origin	Wenzhou, China
Production Capacity	50000pieces/Year

Product Description

Summarize: Based on DQL 5545 L sealer ,add touch screen and improve the speed.That's an intelligent type design for high requirement customer.Shrink machine adopt circular heating tube with fan motor to creat a perfect wind circulation system .By the way , conveyor can be customized to 1.2m and 1.5m.About brand 1.Panasonic" sensors 2."airtac" cylinder 3.Omron" programmable logic controller (PLC), 4."Omron" temperature controller 5."Airtach" air filterOptional:
Shrink machine:

conveyor connecting function can work with very small product.(≤12cm)Specification:DQL5545G:

Model	DQL5545G
Max packing size(mm)	L+2H≤550, W+2H≤450, H≤140
Max sealing size(mm)	L550×W450
Power(KW)	2.2
Capacity	0-40 pcs/min
Voltage	220V 50/60HZ
Sealing temperature	180ºC-250ºC depends on thickness of film and environment temperature
Thickness of film(mm)	0.015-0.05
Packing material	POF PVC
Machine weight(kg)	320
Machine size(mm)	L1760×W940×H1580

Model	DSC-4520	DSC-4525L
Power source	380V 50-60Hz	380V 50-60Hz
Power		12.8KW		13.2KW
	Conveyor speed		0-16m/min		0-16m/min
	Tunnel size(LWH)		1200450200mm		1500450250mm
	Conveyor loading		10kg		10kg
	Machine size (LWH)		15007001260mm		18007001300mm
