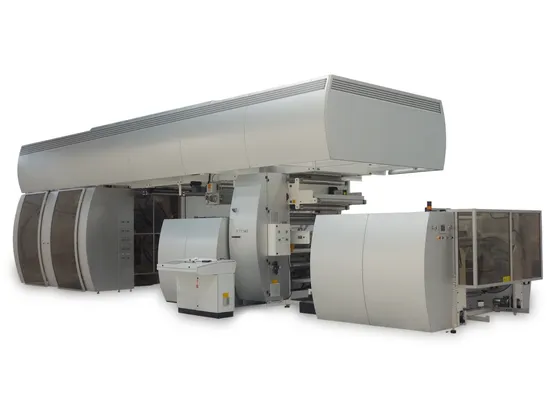

Life Long Service Satellite Dh Standard Export Package Flexography Printing Machine

Overview
Detailed Photos
Substrate
Our Advantages
Features
Technical Parameter:
Packaging & Shipping
Company Profile
FAQ

Overview

Basic Info.

Model NO.	DH-Ofem
Printing Page	Single Faced
Printing Color	8 Colors
Anilox Roller	Ceramic Anilox Roller
Dryer	Electric Heating/Gas/Steam/Hot Oil
Type	Flexo Printing Machine
Embossing Structure	Flexo Printing Machine
Structure	Satellite
Application	Flexible Packaging Printing
Automatic Grade	Automatic
Printing Speed	450m/Min
Printing Section	10
Driving	Printing Part Full Servo Motor Control
Job Changing Time	Immediate Job Changes
Certificate	CE
Transport Package	Standard Export Package
Specification	15m(L) x 11m(W)
Trademark	DH
Origin	Shandong, China
HS Code	8443160001
Production Capacity	20 Sets/Month

Packaging & Delivery

Package Size200.00cm * 150.00cm * 170.00cm Package Gross Weight1600.000kg

Product Description

Coated paper, cardboard, copy paper, BOPP, PET, plastic film, etc., widely used in paper cup, paper box, food package gob, packaging paper and the like printing fields.

No gear control
Anilox roller and plate cylinder adopt
Sleeve technology
Quick job changes
Precise print lengths, especially on extensible films subject to stretch or extension
during their process
Job repeatability

1. Printing part full servo motor control
Press enables to print any repeat within the minimum and the maximum size of the machine, totally eliminating the old gears limitations such as obtaining any intermediary size. Furthermore, it's even possible to print different lengths within a suggested tolerance by using the same print sleeves.
All the motors are synchronized to rotate at same peripheral speed and their angular positions are constantly driven by a centralized electronic system throughout the feedback of encoders.

2. Immediate job changes
Fast job change, easy to operation, no tools needed. Practical and intuitive supports opening system, without the necessity of long procedures and electronic sequences. No hydraulic device, extreme safely. Minimize the number of components, high maintainability.

3. Rigid and Compact structure
The printing units are anchored to the lateral frames by precision linear guides, to ensure the proper rigidity necessary to perform a high print quality. One the rear side each unit is anchored by two linear guides one located below and the other above. In order to offer a solid supporting structure to the mandrels during the sleeves replacement operation.

The printing units do not use any hydraulic device, do not require the use of any tool for operational activities, and minimize the number of components.
All the components of the positioning and control system are located outside the supporting frames, providing (1) Total separation and protection from the ink handling areas;(2) Easy accessibility for maintenance.

Overseas shipping packing

Warmly welcome to visit our factory!

1 what is speed of this machine? Max printing speed is 500m/m.Normal working speed is 400-450m/min.

Ofen CI Flexo Printing Machine Detailed Photos Substrate Our Advantages Features Technical Parameter:

Specification(mm)	800	900	1000	1100	1200	1300	1400
Colors	8
Central drum diamter	1850mm
Max web width	820	920	1020	1120	1220	1320	1420
Max printing width	800	900	1000	1100	1200	1300	1400
Repeat	350~850
Max unwinding diameter	P series: 1000 ; F series: 800
Max rewinding diameter	P series: 1000 ; F series: 800
Max mechanical speed	500m/min
Drying	Electric heating/gas/steam/hot oil
Applicable ink	Eco-friendly water-based ink/Solvent-based ink
Materials	P series: Paper;F series:PE/OPP/PET/Pearlised film,paper etc
Thickness	P series:25-300gsm ; F series:film 10-150µm,paper 25-120gsm
