Overview

Basic Info.

Model NO.	NJP-800
Condition	New
Customized	Customized
Machine Type	Capsule Filling Machine
Main Material	Stainless Steel
Voltage	380V
Warranty	1 Year
Type	Pharmaceutical Packaging Machinery
Model	Njp-800
Maximum Production Capacity	48,000 PCS/H
Motor Power	4kw
Number of Holes	6
Power Supply	Customizable
Size	1090×1070×1860mm
Weight	1150kg
Transport Package	Standard Wooden Pack
Specification	1090× 1070× 1860mm
Trademark	Hanyoo
Origin	Nanjing

Packaging & Delivery

Package Size109.00cm * 107.00cm * 186.00cm Package Gross Weight1150.000kg

Product Description

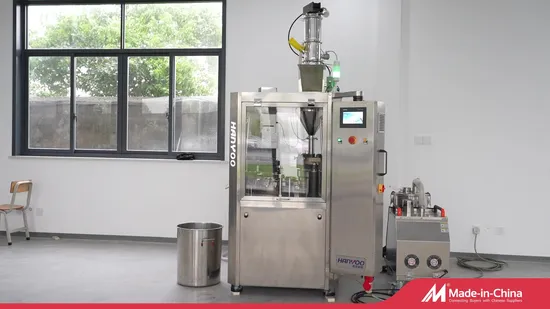

NJP-800 Capsule Filling MachineNJP series automatic capsule filling machine is a new product specially improved by our company according to the market experience. The whole machine adopts arc design, the equipment flow line is smooth and the appearance is atmospheric. The equipment adopts PLC programming, man-machine interface operation, touch screen display. Automatic alarm display for running faults or lack of materials, automatic shutdown, and automatic elimination of alarms after troubleshooting. The machine also has the functions of password input, parameter setting, data printing, zero clearing and so on. All the main key parts of the machine such as transmission shaft, CAM, bearing are imported materials, reliable quality, is the first choice for filling capsule drugs ideal equipment, and fully comply with GMP requirements.SpecificationMACHINE FEATURES1. The equipment adopts internal CAM drive, reduces the center of gravity of the equipment, stable high-speed operation state, adopts Ferguson drive, small vibration, high-speed operation noise is less than 75dB, the dose difference is controlled within 3%-5% (depending on the powder situation);2. The rotating part is completely closed, automatic lubrication system can be added, and the working table is free of oil, avoiding cross-contamination with drugs;3. The gap between the dose plate and the copper plate has a special adjustment device, which does not need to be measured with a feeler, and the adjustment is quick and easy.4. NJP series automatic capsule filling machine adopts German Siemens man-machine interface, PLC programmable controller, liquid crystal display output per minute, cumulative output, empty capsules and powder status, lack of capsule alarm and powder is not enough automatic shutdown, fault diagnosis tips.5. The equipment mold installation has pin holes, mold correction is quick and easy.

Pre-sale service1. The tablet press supports customization
2. Free tablet drawings are designed for you based on the diameter and shape of the tablets.
3. Provide you with free trial service.
4. Can provide professional solid preparation (pharmaceutical equipment) solutions.
5. Free design of mechanical layout drawings.

right elevationleft elevationfront elevation

Technical Parameter

Model	NJP-400	NJP-800	NJP-1200
Motor Power	3kw	4KW	5kw
Number of Holes	3	6	9
Filling Capsule Model	#000- #5	#000- #5	#000- #5
Maximum Production Capacity	24,000 pcs/h	48,000 pcs/h	72,000 pcs/h
Weight	850kg	1150kg	1150kg
Size	810×700×1840mm	1090×1070×1860mm	1090×1070×1860mm

We can customize the production line according to your requirements
Company Profile

NANJING HANYOO PACKING MACHINEY CO.,LTD.NANJING HANYOO PACKING MACHINEY CO.,LTD. is a high technology enterprise which has strong research, production, sales and after-service team. We are specialized in providing the professional packaging solution and packaging equipment for pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical machinery experience can help you more on building your intelligent factory.Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are capsule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator, coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D team, with a variety of high-precision processing equipment and quality testing team to provide product quality assurance. The company passed ISO9001:2016 quality management certification, the products passed through the EU CE certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100countries in the world such as, the United States, Russia, Germany, Spain, Malaysia, Thailand, Brazil and other dozens of countries and regions, and we won good reputation and credibility.

After-sales servicePre-sale service1. Provide operation manual.
2. Provide installation, adjustment, setting, and maintenance videos.
3. Provide free video guidance from professional and technical personnel with more than ten years of experience.
4. Can provide overseas engineering services
5. During the warranty period, if there is any non-human damage, we will replace it with a new one for you.1. The tablet press supports customization
2. Free tablet drawings are designed for you based on the diameter and shape of the tablets.
3. Provide you with free trial service.
4. Can provide professional solid preparation (pharmaceutical equipment) solutions.
5. Free design of mechanical layout drawings.

EXHIBITION & CLIENT

Workshop

FAQQ: Where is your factory? How can I visit your factory?
A: Our factory is located In Nanjing Jiangsu province. We warmly welcome you to visit our factory if you have a travel plan.Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples and we will test on machines.During that time, we will take videos and clearer pictures for you. We can also show you online by video chatting.Q: How about the after service and guarantee period?
A: We offer 1 years warranty since the arrival of the machine. Technical support is available 24 hours . We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.Q: How about the after service and guarantee period?A: We offer 3 years warranty since the arrival of the machine. HANYOO highly recommends that you keep all of your original packaging. This is precautionary to ensure you have what you need if the machine has to be sent in for repair. We have professional team with experienced technician to serve abroad and do the best after service to assure the machine whole life usage.Packaging & Shipping
